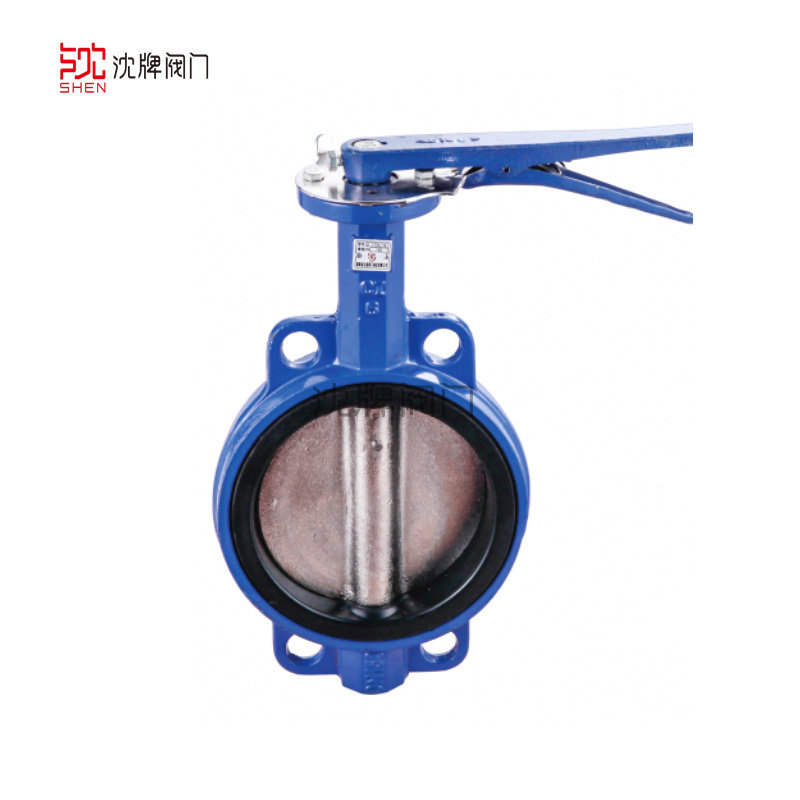

D71X Handle Clamp Butterfly Valve

▌Structural characteristics and uses

The wafer butterfly valve has a disc-shaped butterfly plate that can rotate around the axis inside the valve body. The wafer butterfly valve mainly consists of the valve body, valve stem, butterfly plate, and sealing ring. The valve body is cylindrical with a short axial length and has a built-in butterfly plate. The butterfly plate is driven by the valve stem, and when it rotates 90°, it completes one opening and closing cycle, changing the deflection angle of the butterfly plate to control the flow of the medium. Product features: 1. Small and lightweight, easy to disassemble and maintain, and can be installed in any position.

▌Main component materials

▌Main technical parameters
