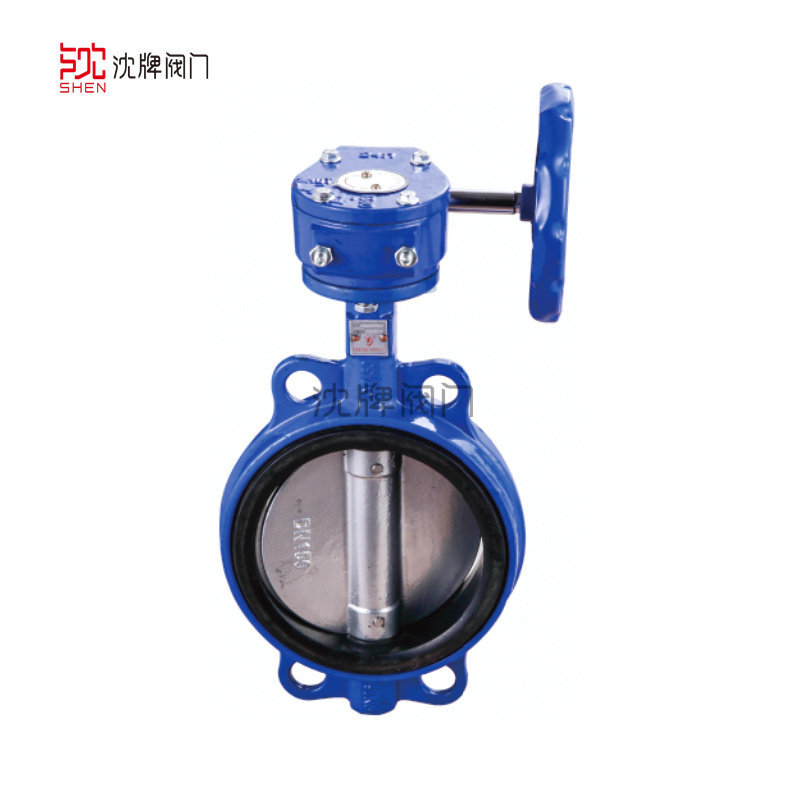

D371X Worm Gear Flanged Butterfly Valve

The wafer butterfly valve adopts a wafer center plate structure, mainly composed of the valve body, valve plate, valve shaft, valve seat, and drive device. It has a simple and compact structure, is small and lightweight, and is easy to transport, install, and disassemble; it operates with a 90° opening and closing, switches quickly, has a small operating torque, and is labor-saving and lightweight.

▌Product Manufacturing Process

▌Structural Features and Uses

The wafer butterfly valve adopts a center plate structure, mainly composed of the valve body, valve plate, valve shaft, valve seat, and drive device. It has a simple and compact structure, is small and lightweight, and is easy to transport, install, and disassemble; it opens and closes at 90°, with a quick switch and low operating torque, making it labor-saving and lightweight; it has good sealing performance, a long service life, and can achieve zero leakage; its flow characteristics are similar to linear, with good adjustment performance.

▌Main Component Materials
